Ecodesign Compliance & Circular Data Middleware
Digital Product Passport Engine
The Adraca DPP Engine ingests product data (CSV, JSON, catalogue SKUs), validates every ESPR field, normalises fibre compositions against the EU Reg 1007/2011 whitelist, computes Idemat-based CO₂e and water footprints, and issues W3C Verifiable Credential 2.0 passports — ECDSA-signed, revocable, and resolvable via GS1 Digital Link. Built for textile supply chains first.
resolver v1.1.0 · dashboard v1.3.0 · AWS EKS · live at dpp.adraca.io · sample passports (synthetic SKUs)
Interface & Capabilities

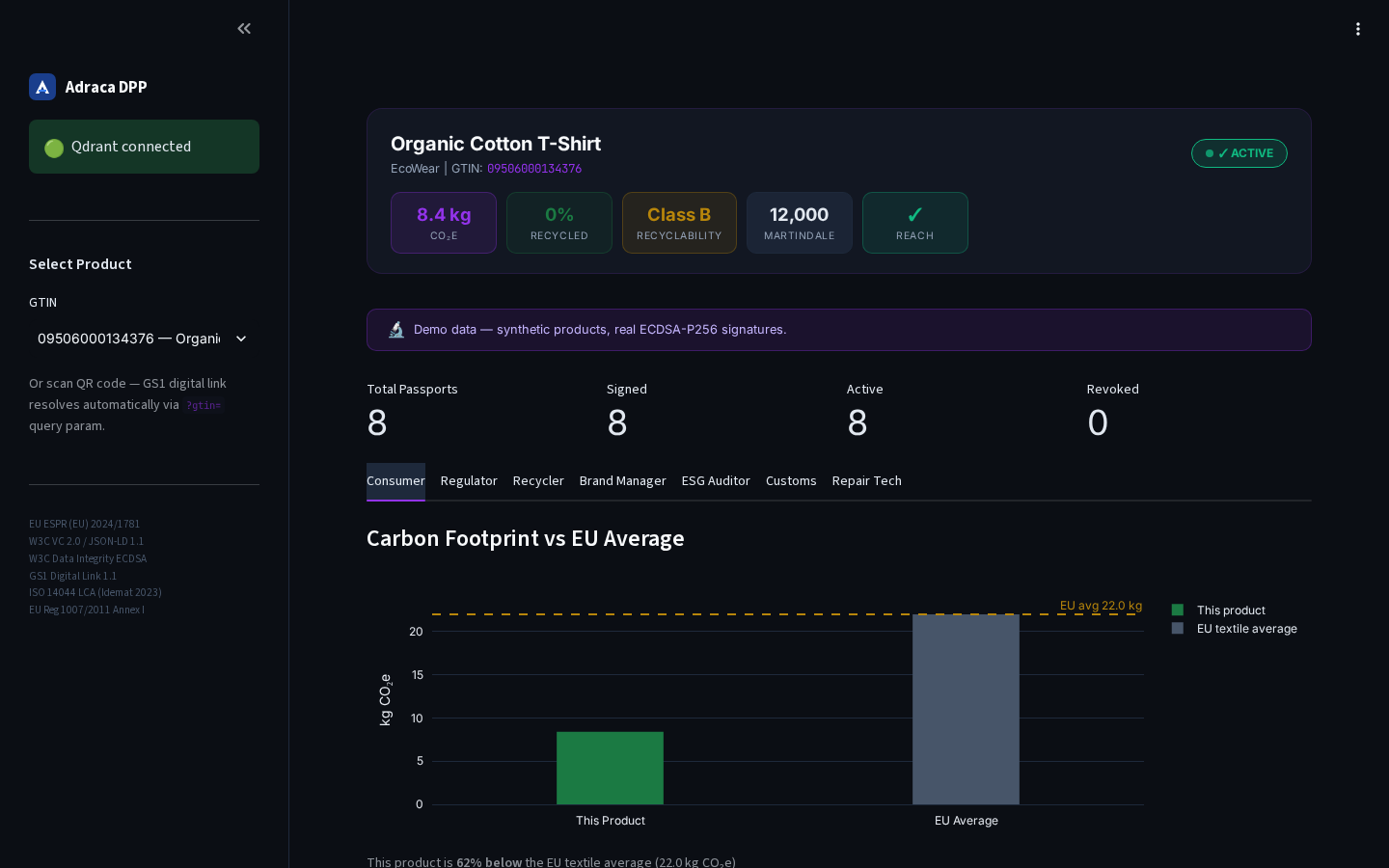

GS1 Digital Link resolve — /01/{GTIN} lands on the passport

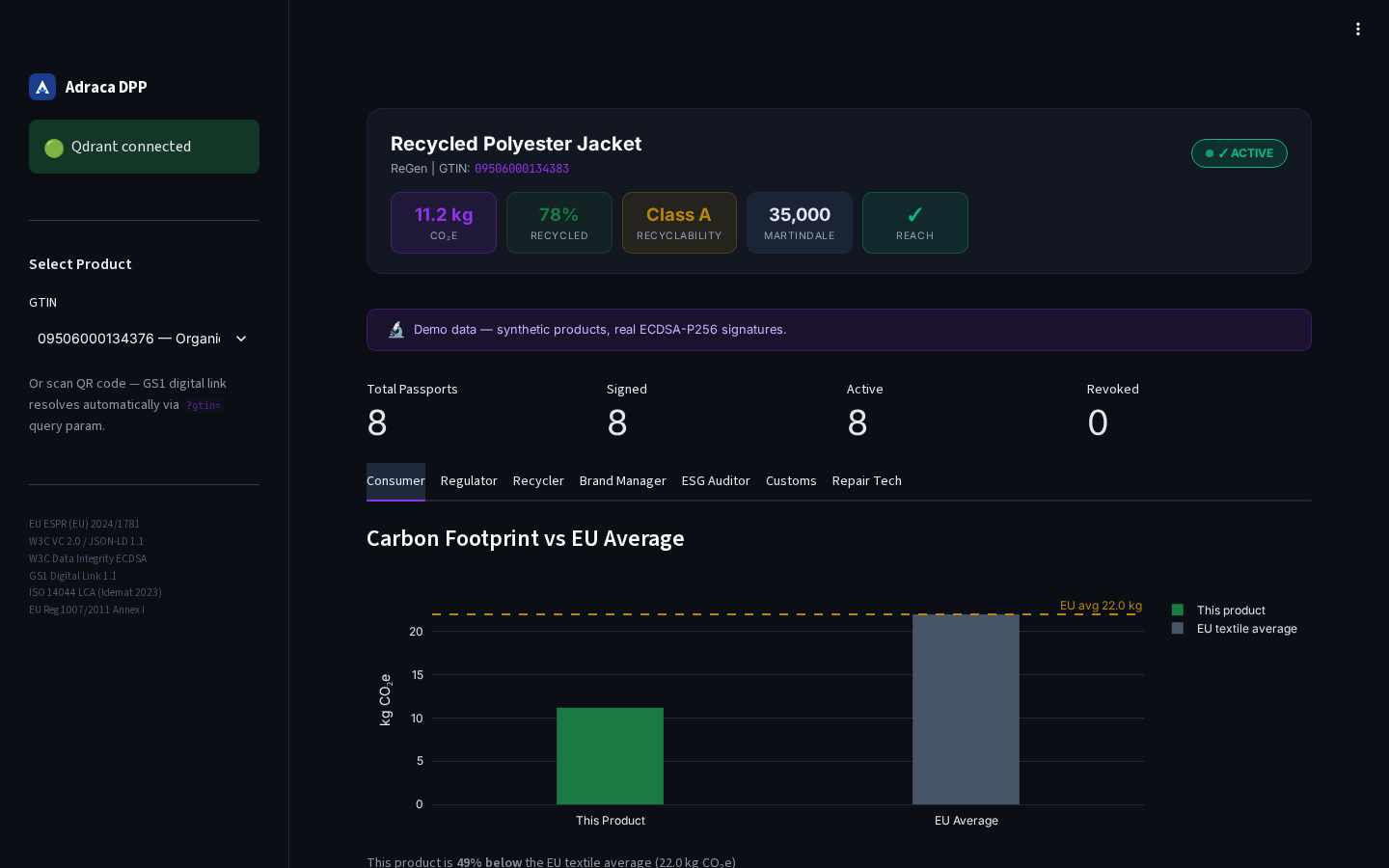

Passport hero — status, CO₂e, recyclability and signature stats

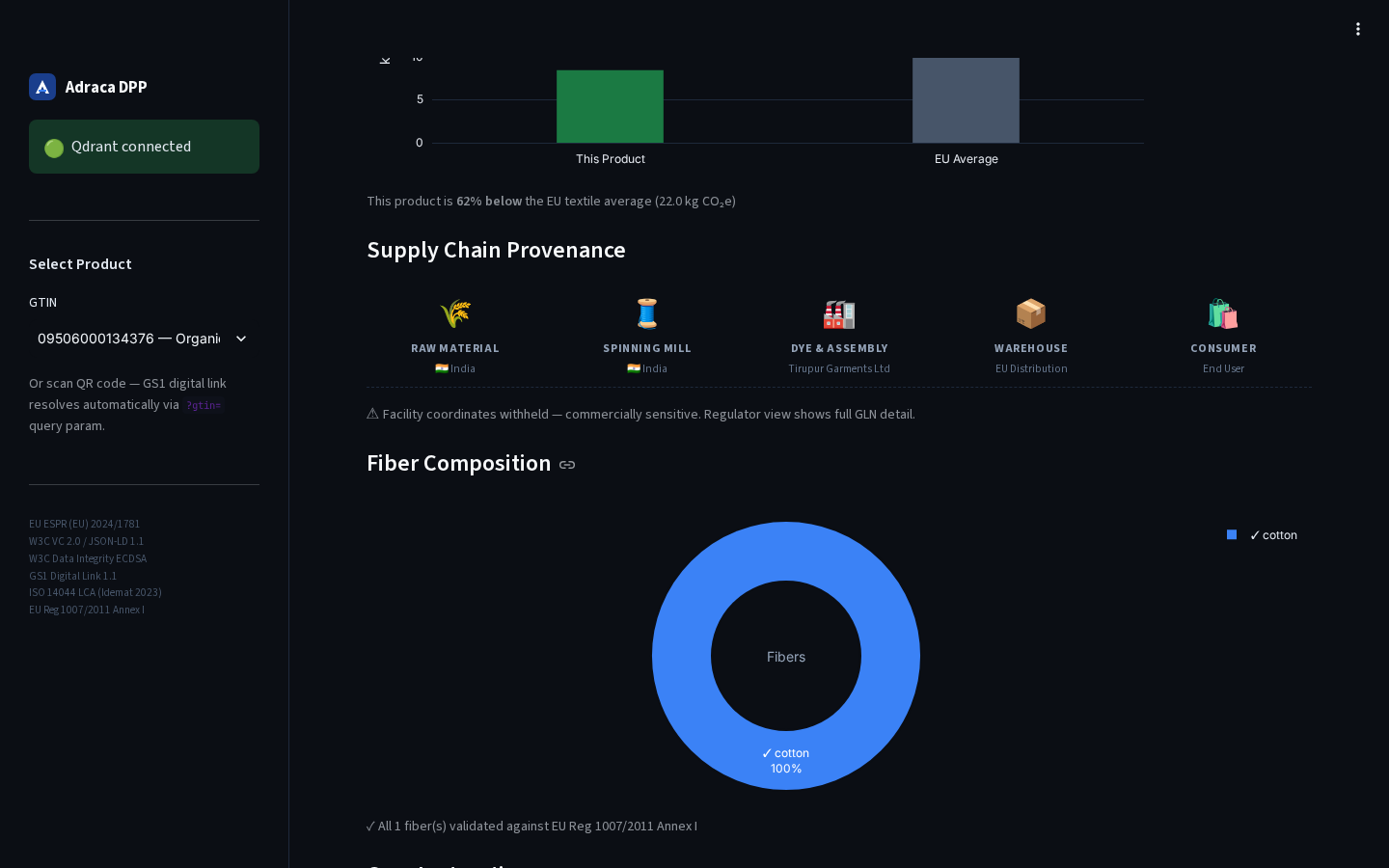

Consumer view — fibre composition, footprint and care

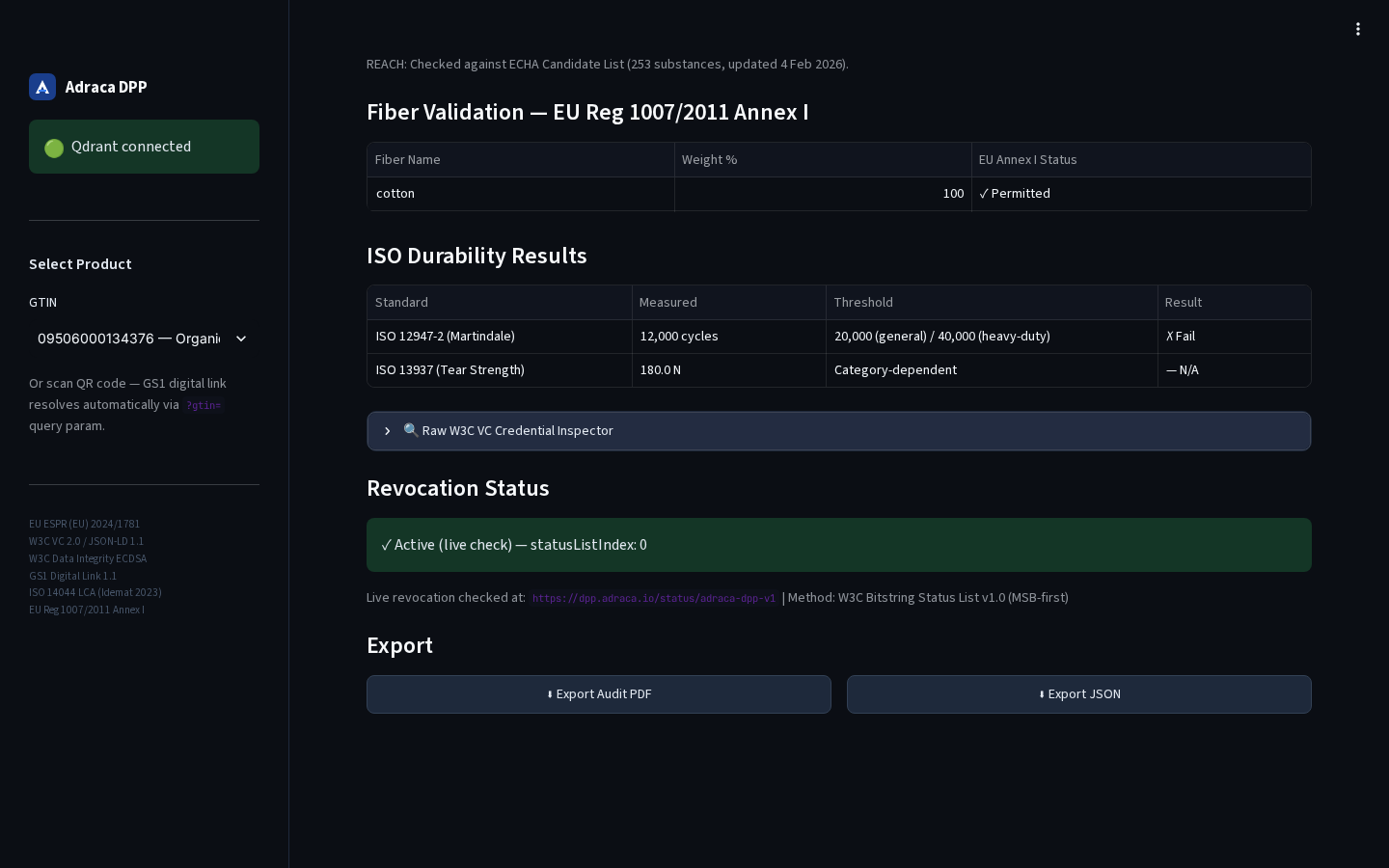

Regulator view — DataIntegrityProof and live revocation status

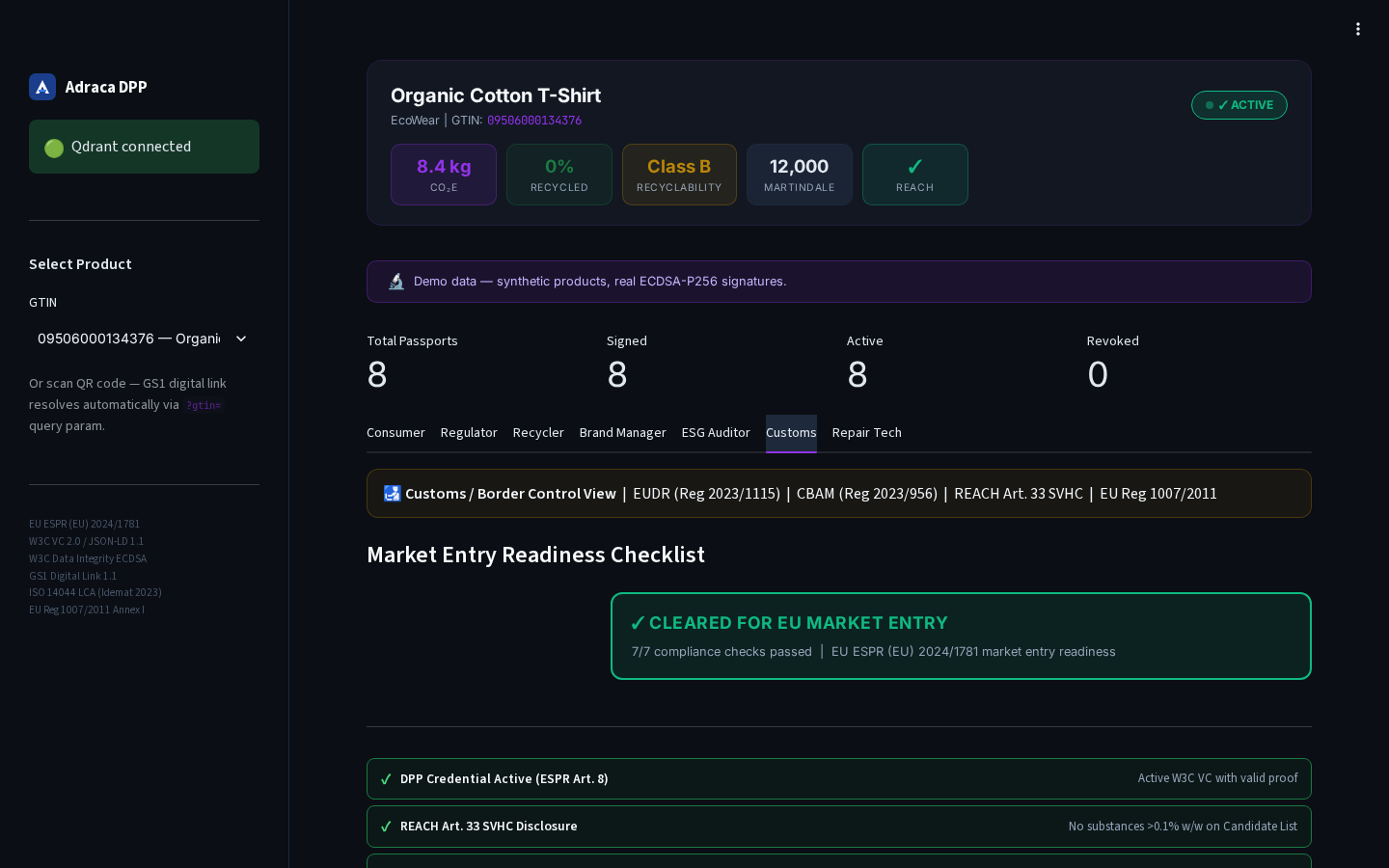

Customs view — EU market-entry readiness checklist

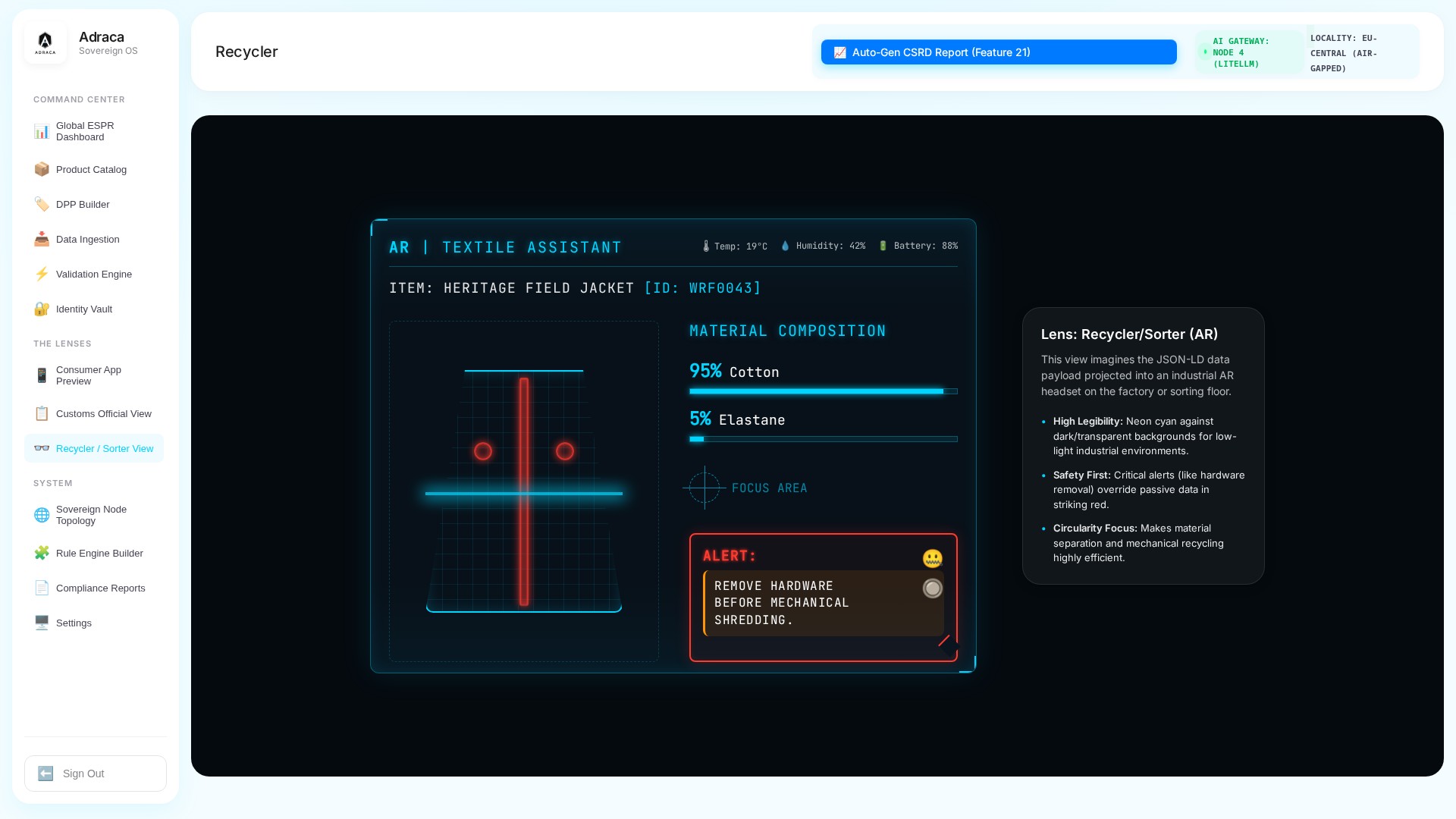

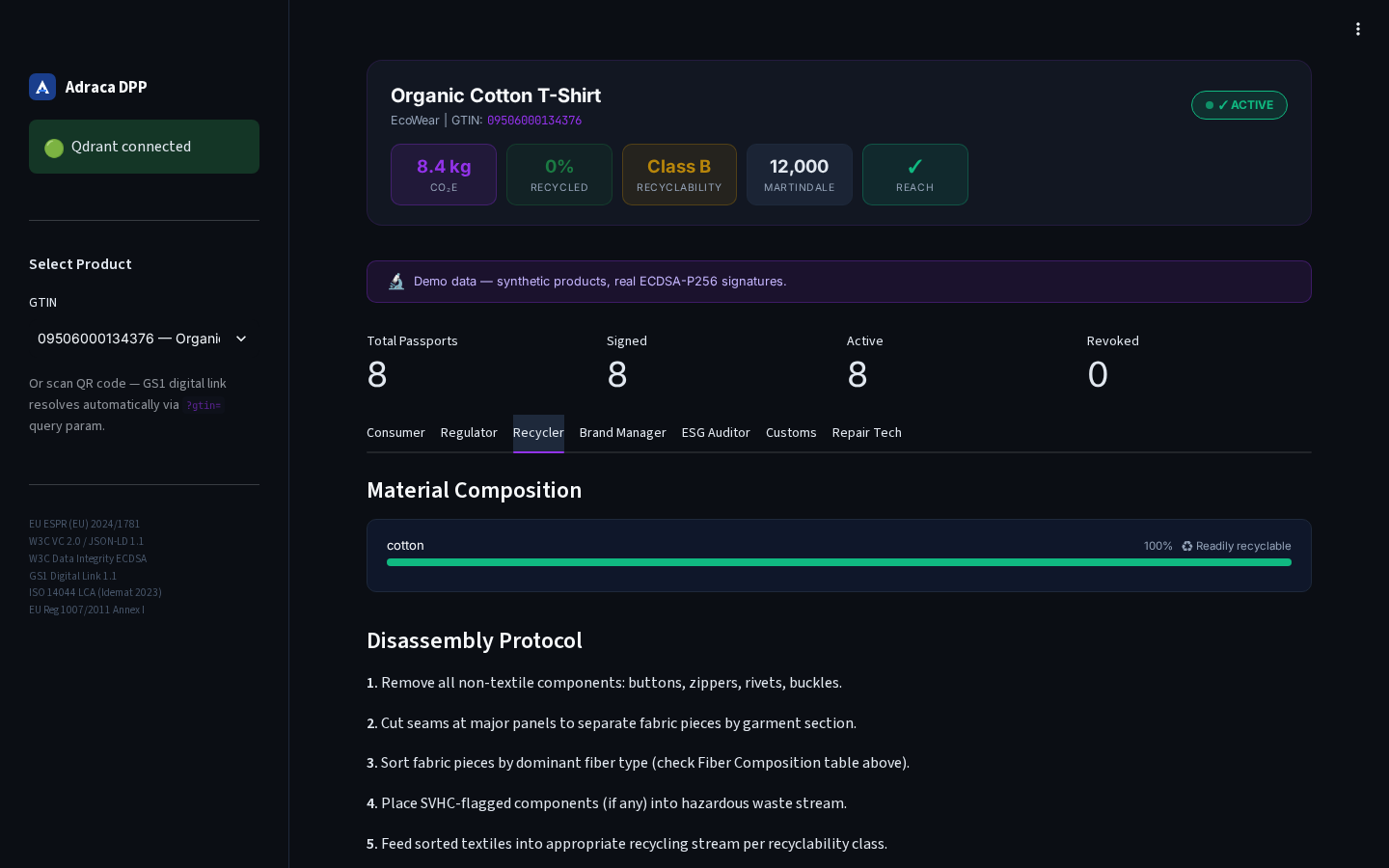

Recycler view — material composition and disassembly protocol
ESPR validation & fibre normalisation
Pydantic-typed validation of every ESPR field; fibre names normalised against the 47-fibre EU Reg 1007/2011 Annex I whitelist via lexical + vector matching with rank fusion.
Signed, revocable passports
W3C Verifiable Credential 2.0 JSON-LD, ECDSA P-256 signed (ecdsa-jcs-2019), Bitstring Status List revocation, GS1 Digital Link URI, QR code and PDF passport per SKU.
LCA & persona views
Idemat 2023 CO₂e and water footprint, A–E recyclability class, REACH SVHC watch list, and a 7-persona dashboard from consumer to customs to recycler.
Architecture
Ingestion
CSV and JSON ingesters plus RGM SKU catalogue ingestion into Qdrant; runs as a nightly EKS CronJob.
Validation & Normalisation
Pydantic ESPR models, EU Reg 1007/2011 fibre whitelist matching (lexical + vector + RRF), REACH SVHC flagging.
Credential Assembly
W3C VC 2.0 JSON-LD assembly, ECDSA P-256 JCS signing, Bitstring Status List revocation.
Resolution & Audit
GS1 Digital Link URIs with QR codes; a FastAPI resolver with content negotiation; DuckDB audit log synced to S3.
Stage 01
Ingest & Validate
SKU batch parsed; every ESPR field checked by typed Pydantic validators.
Stage 02
Normalise & LCA
Fibres matched to the Annex I whitelist; Idemat 2023 CO₂e and water footprint computed with recycled-content credit.
Stage 03
Sign Passport
VC 2.0 JSON-LD assembled and ECDSA-signed; recyclability class A–E derived.
Stage 04
Publish & Audit
GS1 Digital Link and QR generated, credential indexed in Qdrant, audit entry written to DuckDB and mirrored to S3.
Deployment Specifications
Engine
Python 3.12 CLI + Streamlit dashboard
Credential Standard
W3C VC 2.0 JSON-LD · GS1 Digital Link
Legal Frameworks
EU ESPR · Reg 1007/2011 · REACH SVHC
Audit Log
DuckDB → S3 (bronze/silver/gold)
adraca --log-stream
[--:--:--]INGESTING SKU BATCH [CSV]...
[--:--:--]VALIDATING ESPR FIELDS [PYDANTIC]...
[--:--:--]NORMALIZING FIBERS [EU 1007/2011 · RRF]...
[--:--:--]COMPUTING LCA [IDEMAT 2023: CO2E + WATER]...
[--:--:--]DERIVING RECYCLABILITY CLASS [A-E]...
[--:--:--]SIGNING VC 2.0 [ECDSA-JCS-2019]...
[--:--:--]GENERATING GS1 DIGITAL LINK + QR...
[--:--:--]AUDIT ENTRY WRITTEN [DUCKDB -> S3].
